Difference Between 2019 FgTech 4 and 2018 FgTech 4

Here’s the latest FgTech 4 china clone version 2019 with serial number 0475, much more better than the old version with sn 0386.

2019 new Fgtech 4 galletto v54:
http://www.uobdii.com/wholesale/v54-fgtech-galletto-2-master-0475-euro-version.html
2018 old Fgtech galletto 4 v54:
http://www.uobdii.com/wholesale/new-fgtech-v54-galletto-4.html

The reason why you should buy 2019 FgTech 4 is that the new one has a better vehicle and ECU coverage.

Look here: new ECUs and vehicles supported by the cloned FgTech 4 version 2019.
11/12 – OBD driver SSangyong Delphi DCM3.7 Read/Write, Checksum
11/12 – OBD driver for Ferrari 458 Italia MED9.6 Ecu Master and ECU Slave Read/Write, Checksum
10/12 – OBD driver for Fiat/Alfa/Lancia Twinair/Multiair 8GMF and 8GSF Read/Write, Checksum
10/12 – OBD driver for Mazda 5, Mazda 6 2.0 Diesel ECU RF8x Read/Write, Checksum
10/12 – OBD driver for Mazda 5, Mazda 6 2.0 Diesel ECU RF7x Read/Write, Checksum
09/12 – OBD driver for Simos 10.xx VAG 1.2 TSI Read/Write, Checksum
09/12 – OBD driver for CRD 3.xx Mercedes 2200 CDI Read/Write, Checksum
09/12 – Simos PCR2.1 VAG 1.6 TDI Unlock Boot Tool – Read/Write EEPROM
09/12 – OBD driver Simos PCR2.1 VAG 1.6 TDI Read/Write, Checksum
08/12 – RSA recognition Peugeot Bipper
08/12 – RSA recognition Citroen Nemo
08/12 – OBD driver Driver for writing Bosch EDC16C34/5 Peugeot Bipper Read/Write, Checksum
08/12 – OBD drive Driver for writing Bosch EDC16C34/5 Citroen Nemo  Read/Write, Checksum
07/12 – OBD driver Delphi DCM3.5 for Tata Safari  Read/Write, Checksum
07/12 – Checksum recognition for DCM3.7 Ssangyong
07/12 – Checksum recognition for DCM3.7 Opel and Saab
07/12 – Checksum recognition for DCM3.7 Kia  and Hyundai
07/12 – Boot Visteon ST10F275 RX-TX Mode
07/12 – Boot ME7.9.10 ST10F275 RX-TX Mode
06/12 – Checksum recognition for Denso Subaru Tribeca
06/12 – Boot Mitsubishi MH7203 Hyundai
06/12 – Checksum recognition for Denso Nissan L200
06/12 – Checksum recognition for Denso Nissan X-Trail
06/12 –  OBD driver Opel Simtec75 CAN  Read/Write, Checksum
05/12 – OBD driver  Porsche SDI3 CAN  Read/Write, Checksum
05/12 – Corvette Utility CAN for change VIN, Code Align, Erase Errors
05/12 – Corvette Utility VPN for change VIN, Code Align, Erase Errors
05/12 – OBD driver Renault SID305 CAN  Read/Write, Checksum
05/12 – OBD driver Maserati ME9 CAN  Read/Write, Checksum
04/12 – Tool Boot Hitaci Phase 3
04/12 – Tool Boot Hitaci Phase 2
04/12 – OBD driver Fiat ME17.31 CAN  Read/Write, Checksum
04/12 – Boot Mitsubishi for L200 MH8102F
03/12 – Boot Mitsubishi for Lancer EVO MH7202
03/12 – Fiat MJ8DF CAN Serial Injectors
03/12 – Fiat MJ8DF CAN Serial Injectors
02/12 – OBD driver Fiat MJ8DF CAN  Read/Write, Checksum
02/12 – OBD driver Fiat MJ8DF K-line  Read/Write, Checksum
02/12 – OBD driver Mercedes Delphi CRD2.xx CAN  Read/Write, Checksum
01/12 – OBD driver Ford Delphi DCM3.5 CAN Read/Write, Checksum
01/12 – OBD driver PSA Delphi DCM3.5 CAN  Read/Write, Checksum
01/12 – OBD driver VAG Simos 3xx Boot mode 29F400 C167 Read/Write, Checksum
12/11 – OBD driver VAG Simos 9.1 Boot mode 29F400 C167 Read/Write, Checksum
12/11 – OBD driver VAG Simos 7.1 Boot mode 29F400 C167 Read/Write, Checksum
12/11 – OBD driver VAG Simos 33 K-line serial Read/Write, Checksum
12/11 – OBD driver VAG Simos 32 K-line serial Read/Write, Checksum
12/11 – OBD driver VAG Simos 3PG K-line serial Read/Write, Checksum
12/11 – OBD driver VAG Simos 3PE K-line serial Read/Write, Checksum
12/11 – OBD driver VAG Simos 3PD K-line serial Read/Write, Checksum
12/11 – OBD driver VAG Simos 3PC K-line serial Read/Write, Checksum
12/11 – OBD driver VAG Simos 3PA K-line serial Read/Write, Checksum
12/11 – OBD driver VAG Simos 9.1 K-line Read/Write, Checksum
11/11 – JTAG MPC55xx
10/11 – New password Tricore Tprot V08-10
10/11 –  OBD driver Renault Valeo V40, Read/Write, Checksum
10/11 – AUD Renesas


Good to know:
 1.Fgtech 4 china clone comes with Galleto v54
http://www.uobdii.com/wholesale/v54-fgtech-galletto-2-master-0475-euro-version.html

2.Fgtech 4 china is amaster version:
Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time

3.Fgtech 4 Galletto v54 clone – good or not?

Here are real Galletto v54 reviews. Hope they help.

Galletto v54 CLONE
So far all good up to today:

Alfa 147: immo off (k line /boot mode)-100%

clone iveco edc16： BDM -100%

Mercedes 308 benz sprinter edc5c2: – k-line / flash file – 100%

VW crafter: obd read flask – 100%

Opel Corsa-D: CAN – Obd read -100%

BMW 320D E46: – BDM Clone ecu’s K-line obd read and Write – 100%
Golf Plus 2006 2.0TDI: OBD CAN WORK – Read & Write OK
BMW X5 2007 3.0TDI: OBD CAN WORK – Read & Write OK
EDC16c9(Opel): OBD CAN-R/W OK
EDC16c9(Opel): BDM-R/W OK
EDC15P(VW Bora): K line R/W OK
EDC16c3(Peugeot 307 1.4HDI): K line and BDM R/W 100% correct
audi s3 med9.1: read/write ok obd
mercedes glk delphi CRD2: read/write ok obd
peugeot 207 edc16c34: read/write ok obd
golf6 edc17cp14: read/write ok obd

EDC16c3(peugeot): K line-only ecu data—Galletto mini EU version Portugal(my A…..s)
EDC16U1(VW Touran): K line-only ecu data ,no read

VW Golf5 1.9TDI: OBD r/w Flash – 100%
FG V54 with these components that all works: jtag BDM Boot OBD

UOBDII All rights reserved 2019 FgTech 4 sn 0475 vs. 2018 FgTech 4 sn 0386

FGTECH Galletto 2 V54 read and write Renault Megane ECU

FGTECH Galletto 2 V54 can work with many cars, also some trucks, some Tractor Marine, some Motorbikes, it has "Tool Boot" and "BDM / JTAG" options etc.

Here I'd like to show how to read and write Renault Megane ECU successfully.

Operate data reading...

Reading ok and save as "Can clip ecu".

End of read, turn the dashboard off.

Click on "Open File" to open "Can clip ecu" on the desktop.

Writing ECU...

End writing...OK

Turn the dashboard off and back on, then wait for 10seconds before continuing

Wait...

Turn dashboard on...

Read warning...

ECU reading ok

Done!
That's all
Thanks

Conclusion:
FGTECH FW 0475 EU Version installation will cost a little time, but after you get it done, it will be easy to read, write ECU data and also do checksum.

FGTECH Galletto 0475 EU Software Win7 Installation

Firstly install FGTECH Galletto 2 FW 0475 EU Version on a win7 computer, then open "EOBD2 by F.g. technology 2012" to read, write ECU data for cars, trucks, motorbikes, tractors etc. Galletto 2 FW 0475 can also cover Tool Boot, BDM JTAC. Finally perform Renault Megane ECU reading, writing and checksum for example.


FGTECH Galletto 2 0475 EU Version Win7 Installation Guide:

Open the folder "Program", then open "V54 for 0475" to install fgtech v54 on Win7.

Copy "EVO.dll" and "mfc42.dll"

Right click on "icona.ico" on the desktop, select "Properties", select "Open file location".

Paste the "EVO.dll" and "mfc42.dll" to replace the same one.

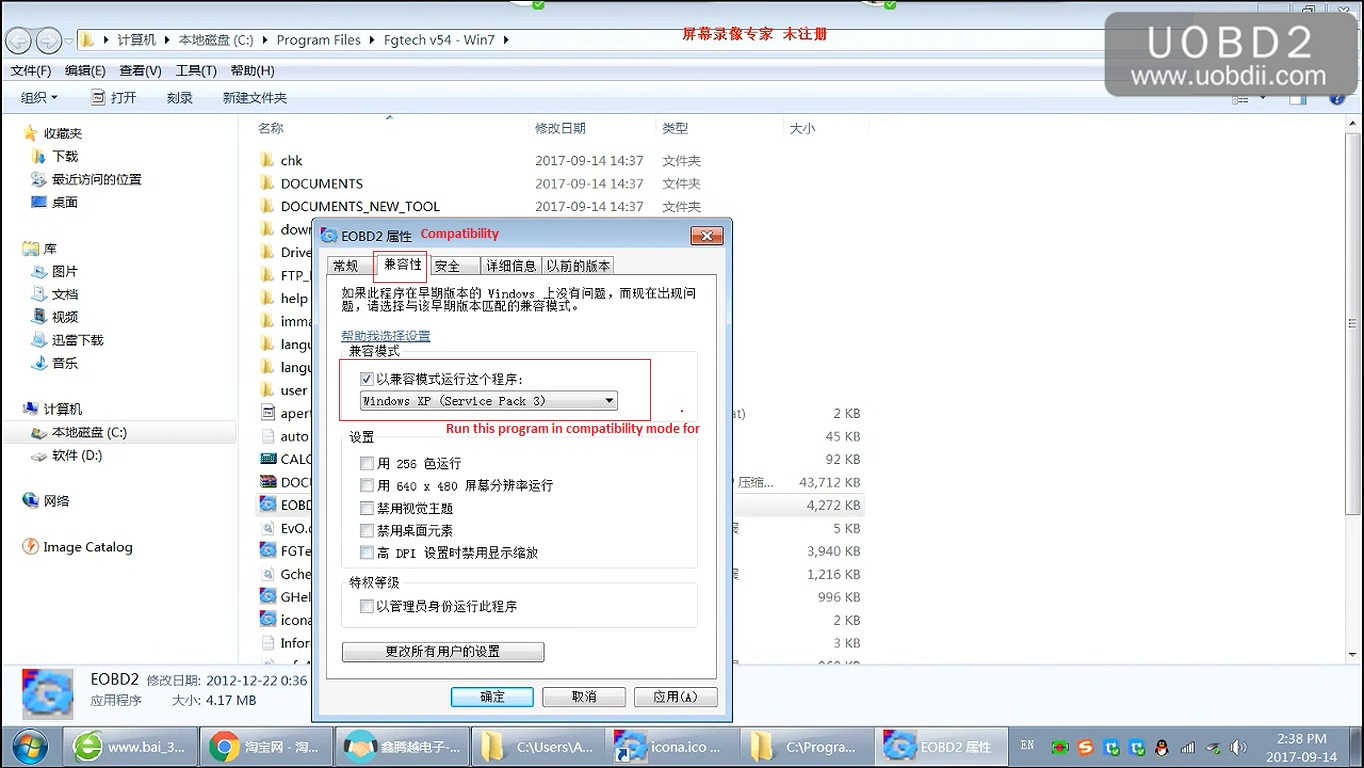

Right click on "EOBD2", choose "Properties".

Select "Compatibility", tick off "Run this program in compatibility mode for".

Click on "Yes".

Open device management, wait until the computer read out "FGTECH", right click on it and choose "Update the driver program".

View the computer to check the driver program (option 2).

Now you can find out USB FGTECH Driver.

Information: Windows Vista or above detected, making a second path.

Open "EOBD2 by F.g. technology 2012"

Click "Help", you can get many user manual for reference.

For example, BDM MPC5xx user manual is very detailed on how to do step by step.

And JTAG MPC55XX user manual is also available.

Article from:blog.uobdii.com

Know more about FGTech Galletto 4 from questions

Recently,FGTech Galletto 4 is now version v54. What is difference between v54 and v53? What are the two CD? Where to download software? Could it works with other tools, like ECUSafe 2.0 OBD ECU program? Today, we will know more about FGTech Galletto 4 from these questions.

What is difference between v54 and v53?

FG TECH galletto v54 and v53 have the same functions, but v54 only can read and write engine ECU data but no clear GR gestion.

What are the two CD in the package?

One is computer XP system CD, and the other is software.

Where to download software if CD is broken or lost?

Better ask your seller for help, for different seller will provide certain software available for their customers. Here is a link for clients bought v54 from UOBDII.COM:

http://www.uobdii.com/wholesale/fgtech-v54-galletto-4-master.html

Could it works with other tools, like ECUSafe 2.0 OBD ECU program?

Actually, ECUSafe 2.0 OBD ECU program is an independent software, and so does galletto; if you would put them together to use, it might be ok; if not, it also ok.

What are the features of v54?

It supports window xp, unlock version, use directly and with FGTECH V54 PCB BORAD.

Therefore, v54 is friendlier than v53, could work with other tool or do alone, more compatible version, and available with software free download for chinaautodiag.com, with software and xp system cds and so on. Knowing more about FGTech Galletto 4 from these questions now? if do, share with your friends.
